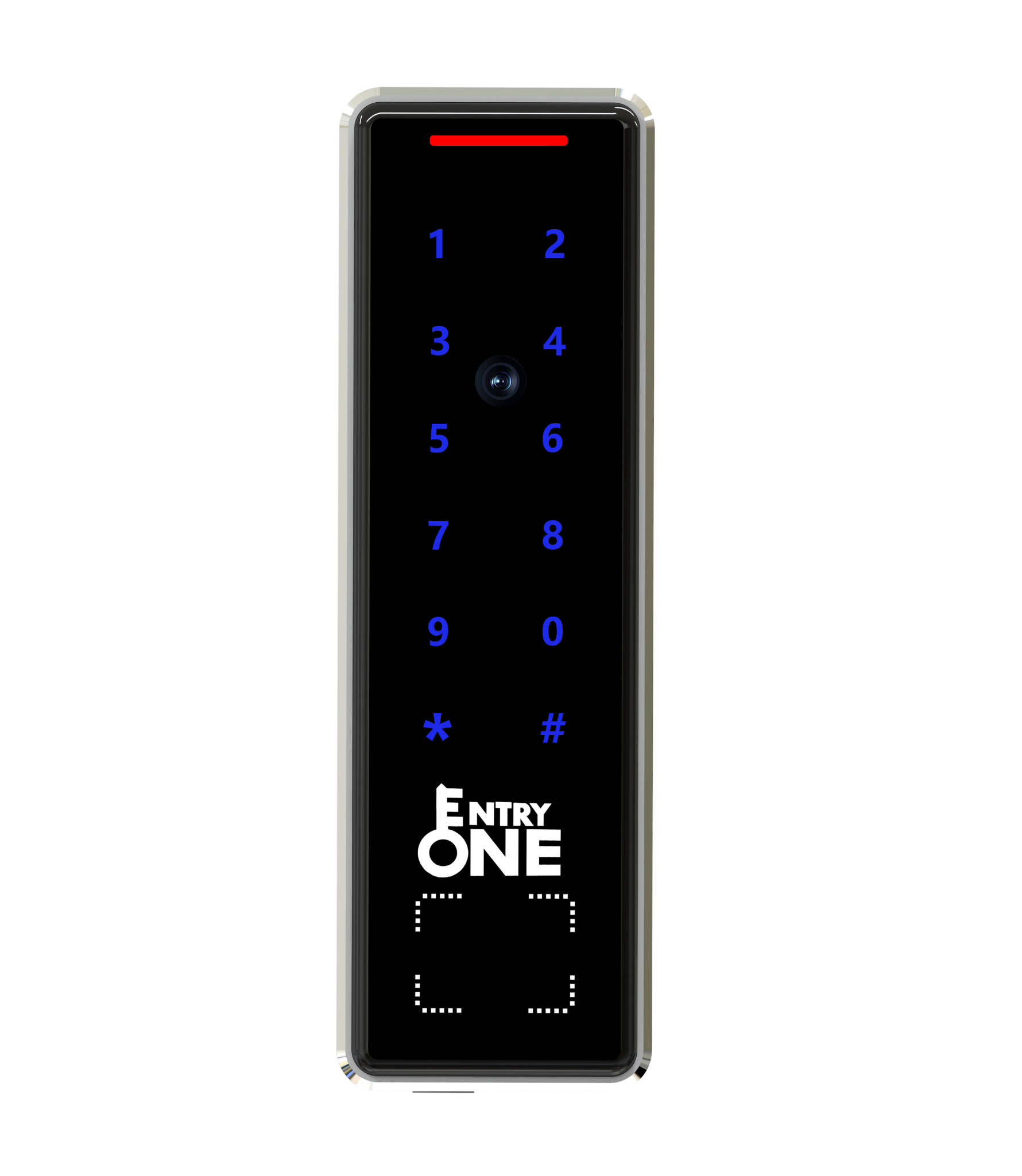

Identry 6

Enterprise Edge Reader

Unified Cloud + Edge Access

Retrofit-friendly wiring: Standard 4-wire to EntryCore with a 2-wire fallback.

At-the-door intrusion inputs: Door Position Sensor (DPS) + Request-to-Exit (REX) wired directly to the reader

Biometric multi-factor options: Face + PIN or Face + Card on a mullion-sized edge device

Motion-activated video auditing for event context without user interaction

Outdoor-ready build: IP65 environmental rating and IK08 impact rating

Supported access modalities

Facial Recognition Mobile (BLE) 13.56 MHz Cards (CSN) PIN / Keypad QR Guest Pass Multi-Factor (Face + PIN/Card)

Why integrators choose Identry 6

Zero-touch provisioning: Factory-injected TLS certificates and serverless IoT enrollment enable fast, repeatable deployments.

No rip-and-replace badge engine: High-frequency CSN polling helps enterprises migrate without reissuing badges.

ADA-compliant edge AI: Designed for real-world mounting heights while maintaining biometric performance.

Smart-edge video auditing: Motion-triggered clip capture improves investigations and reduces nuisance recordings.

Deploy on any infrastructure

4-wire workhorse: Power + data + deterministic one-person tokens between Identry 6 and EntryCore.

2-wire fallback: Power and data over a single remaining pair when legacy conductors are degraded.

6-wire / boost: Optional third pair for boost power at extreme distances or site-specific lock power options.

Cat5e/Cat6: Pair doubling supported to reduce voltage drop over long runs.

Identry 6 | Enterprise Edge Reader

Technical specifications

Specification	Value
Form factor	Mullion reader
Dimensions	H 6.0" × W 1.75" × D 1.0"
Housing	Premium aluminum alloy chassis with tempered glass faceplate
Environmental	IP65 (dust-tight, water-resistant for direct outdoor exposure)
Impact rating	IK08
Operating temperature	-4°F to 125°F (-20°C to 52°C)
Camera & video	HD vertical sensor (portrait orientation); motion-activated video capture
Illumination	Auto-sensing backlit LED for low-light recognition
Local inputs	Dedicated inputs for DPS, REX, and tamper
Relay (edge mode)	Internal solid-state relay (1A / 30V max) for 2-wire fallback mode or secondary functions
Cloud	Serverless AWS IoT architecture; factory-injected TLS certificates or cloud issued
Security	AES encryption in transit and at rest within a hardened edge OS environment
Tamper	Optical/physical tamper switch with local alarm and cloud notification

Deployment topologies

Standard 4-wire: Red/Black for power and link, Green/White for token pair.

6-wire: Third pair for boost power at extreme distances or site-specific lock power options.

Cat5e/Cat6: Pair doubling supported to reduce voltage drop on long runs.

2-wire fallback (edge-relay mode): Power and data over one pair; reader can locally fire a lock via internal relay.

Intrusion logic at the door

DPS loop: Wire the door contact directly to the reader. A forced-open event can trigger alerts and video capture.

REX input: Wire the interior motion sensor or button to log legitimate exits and suppress nuisance alarms.

Cloud scheduling: Access and intrusion rules can follow schedules (e.g., unlock and disarm during business hours).

Compliance & legal notice Power sourcing and installation practices may be subject to UL 294 / UL 603 requirements and local codes. Integrators are responsible for selecting listed power supplies and ensuring code-compliant installation. Use of facial recognition and biometric data collection is subject to state and local regulations; customers are responsible for compliance.
